Coin Booklet
The Coin Booklet was developed by Sigma Metalytics to help new users and new investors get all the info they need for the most popular and common coins in one place. They consulted with the largest online retailers to determine which coin and bar types were most popular among their customers, then researched the correct information for each coin and bar, and collected all of that info in this booklet.
The booklet provides an overview of best testing practices, what to look out for, and common counterfeiting techniques. The booklet details each sample type's weight in ozt, weight in grams, thickness in mm, diameter in mm, which alloy setting to use to test it on the Sigma Metalytics Original, and which sensor to use to test the sample.
The sample types included in the booklet are:
Gold
American Buffalo, American Eagle, Australian Kangaroo, Austrian Philharmonic, Canadian Maple Leaf, Chinese Panda, Credit Suisse Bar, Mexican Libertad, PAMP Suisse Bar, South African Krugerrand, United Kingdom Britannia, Valcambi Suisse Bar
Silver
American Eagle, Australian Kangaroo, Austrian Philharmonic, Canadian Maple Leaf, Chinese Panda, Mexican Libertad, South African Krugerrand, United Kingdom Britannia, United States Peace Dollar, United States Morgan Dollar, United States 90% Dime, United States 90% Quarter, United States 90% Half Dollar
Platinum
American Eagle, Austrian Philharmonic, Canadian Maple Leaf, United Kingdom Britannia
ATTENTION
Three Wands
The 'Original' comes with three Wand attachments that enable it to perform surface measurements on a broad spectrum of sample sizes, ranging from 1/10 oz of gold to 10 oz of silver.
In-depth Surface Analysis

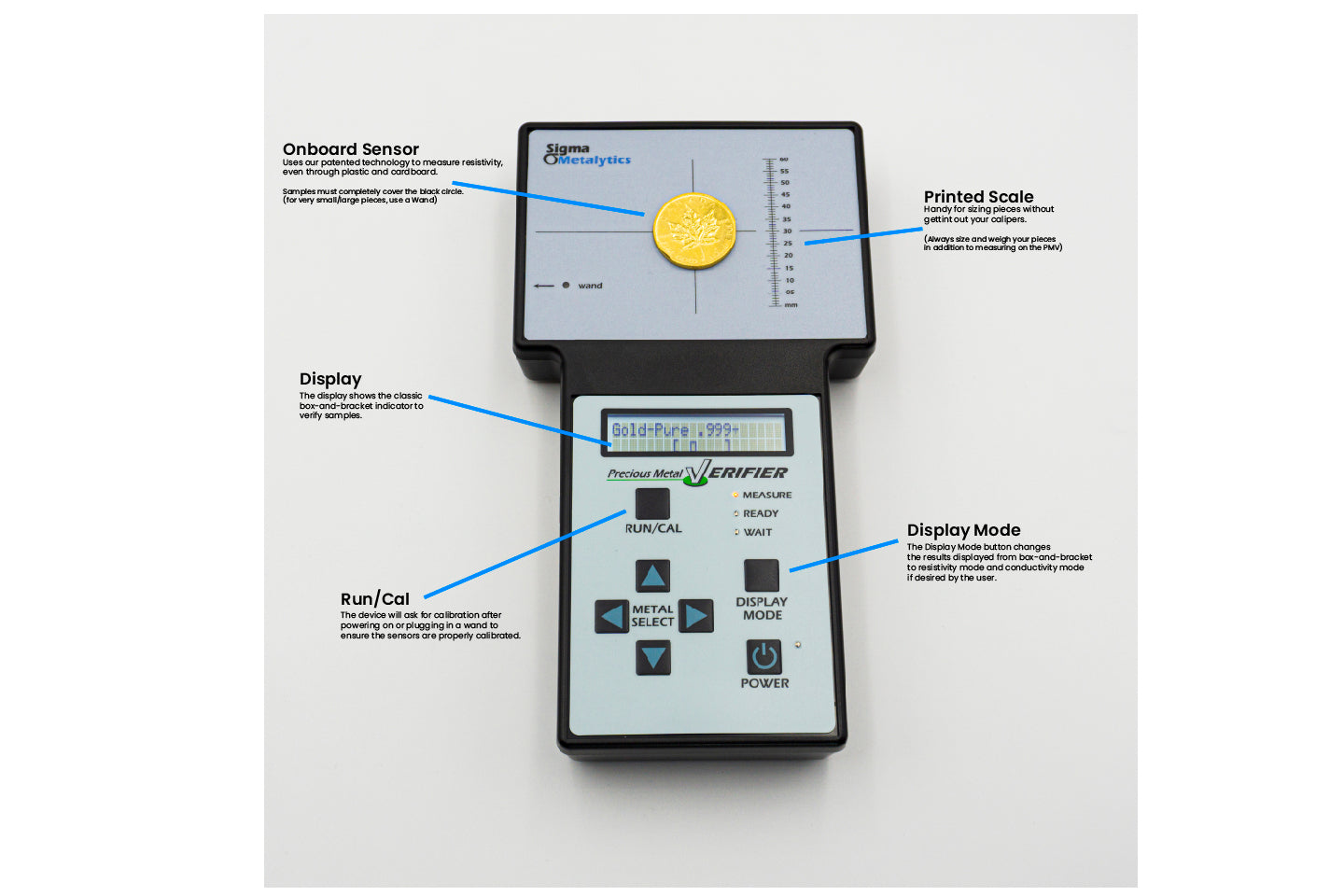

The Sigma Metalytics Original probes beneath the surface of your sample to detect plating and hidden inserts. Whether it's encased, slabbed, capsuled, or assayed, the Original has got it covered.
Main Sensor Specs
- Minimum Sample Diameter: 24.0 mm
- Maximum Sample Thickness: 0.4 mm
- Example Sample Types: 1/2 oz gold - 2 oz silver
Small Wand Specs
- Minimum Sample Diameter: 8.0 mm
- Gold-Over-Tungsten Detection Limit: 0.18 mm
- Example Sample Types: 1/10 oz gold - 1 oz gold
Large Wand Specs
- Minimum Sample Diameter: 18.0 mm
- Gold-Over-Tungsten Detection Limit: 0.25 mm
- Example Sample Types: 1oz gold - 2 oz silver
Bullion Wand Specs
- Minimum Sample Diameter: 24.0 mm
- Gold-Over-Tungsten Detection Limit: 1.5 mm
- Example Sample Types: 2 oz silver - 10 oz gold
